Standard 22 NX Gyro Compass

Standard 22 NX
operates accurately and reliably in all environmental conditions

  • Product Details
  • Product Features
  • Product Download

Standard 22 NX
operates accurately and reliably in all environmental conditions

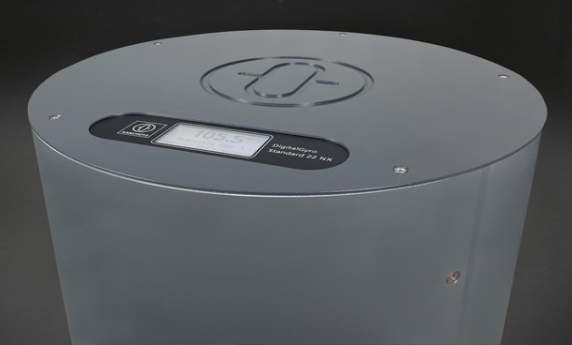

The Standard 22 NX is a gyro compass, a nonmagnetic compass that uses a motor-driven gyroscope to indicate true north. Anschütz designed the Standard 22 NX for high accuracy, reliability and operational safety even under harshest environmental conditions for all kind of ships. With interfaces for serial data, Ethernet and Bridge Alert Management it offers easy installation and integration.



Highest operational safety under harshest environmental conditions.

  • High accuracy of 0.4° sec lat rms (in average)
  • Integration of up to four sensors, including third-party compasses (up to three gyro compasses, or two gyros and a GNSS THD, and a magnetic compass)
  • CAN bus based real time network with up to 400m cable length
  • Heading monitor, with manual or automatic switch over of gyro compasses
  • Automatic correction of magnetic heading by deviation and variation (with GNSS receiver)
  • Quick settling mode



Find all technicial data here: Data sheet Standard 22 NX

Brochure
